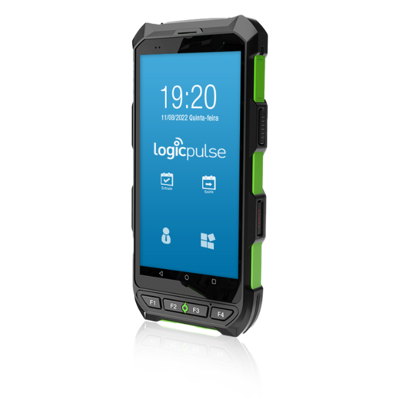

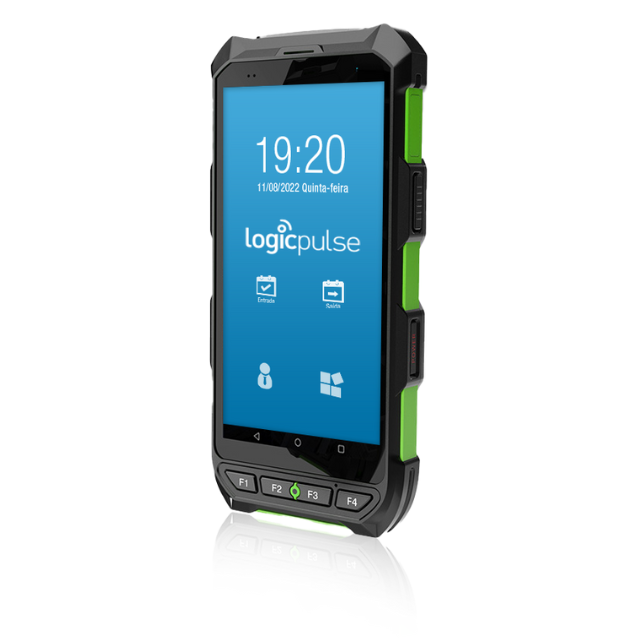

Terminal Portable Android H1 - IP65 [GRFH1]

The Android H1 Portable Terminal features integrated GPS and Wi-Fi, 3G, 4G and Bluetooth connectivity, enabling efficient attendance and field task management with full mobility. It is especially suitable for mobile teams, personnel control at construction sites, industries, mines and demanding environments. It includes a 5.5" HD IPS display, a 13 MP rear camera and fast QR and barcode scanning. It offers precise facial recognition (≥99%) and a robust structure with IP65 certification.

Technical Specifications

General

• Power supply: 5V 2A
• Internal battery: Integrated Li-ion 5200mAh
• Structure material: ABS plastic with tempered glass surface
• Operating environment: Indoor / Outdoor
• Dimensions: 170mm x 80mm x 20mm
• Weight: 700g
• Operating temperature: -20°C to 50°C
• Storage temperature: -20°C to 70°C
• Operating humidity: < 90% RH
• Storage humidity: < 90% RH
• Certifications: ISO9001, ISO14001, CE, FCC

Performance

• NFC reading distance: 3cm – 5cm
• Biometric authentication: Face, Fingerprint (optional)
• Facial recognition algorithm: Face 5.6.2
• Facial recognition capacity: 50,000
• Facial recognition speed: < 1 second
• Facial recognition accuracy: ≥ 99%
• Fingerprint sensor type: Semiconductor
• Fingerprint verification time: ≤ 0.5 seconds

System

• Operating system: Android 10.0
• CPU: Octa-core 64bit Cortex-A73, 2.0GHz
• Storage: 4GB RAM / 64GB ROM, Micro SD (up to 256GB expansion)
• Resolution: 720 x 1440
• Camera: Rear 13 MP / Front 5 MP
• Supported card type: ISO14443A & 15693, NFC-IP1, NFC-IP2
• SDK: PUSH SDK
• Display: 5.5-inch HD IPS LCD touchscreen
• Code reader: QR code, PDF417, Data Matrix, MicroPDF417, Aztec

Capacities

• User capacity: 50,000
• Facial capacity: 50,000
• Card capacity: 50,000
• Record capacity: 1,000,000
• Fingerprint capacity: 30,000 (optional)
• Interface: 1 x USB 2.0 Type-C

Supported Software

• Firmware functions: Push, Scheduling, Automatic Status Switching, Record Query, Groups, Holidays, DST, Work Codes, Duress Mode (Password and Fingerprint), Wallpaper and Screensaver Customization
• Languages: English, Korean, Latin American, Indonesian, Vietnamese, Traditional Chinese, Portuguese, Spanish, Farsi, Japanese, Russian and Thai

Communications

• 3G/4G: TDD LTE Band 38, 39, 40, 41; FDD LTE Band 1, 2, 3, 4, 5, 7, 8, 12, 17, 20; WCDMA (850 / 1900 / 2100 MHz); GSM / GPRS / Edge (850 / 900 / 1800 / 1900 MHz)
• WLAN: Dual-band Wi-Fi 2.4GHz / 5.0GHz – IEEE 802.11 a / b / g / n / ac
• Bluetooth: Bluetooth Class v2.1+EDR, v3.0+HS, v4.2
• GPS: GPS (A-GPS), Glonass (accuracy up to 5m)
