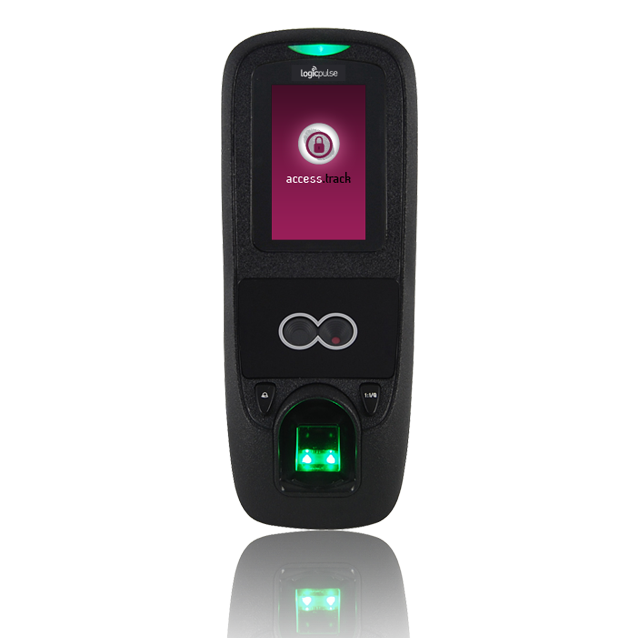

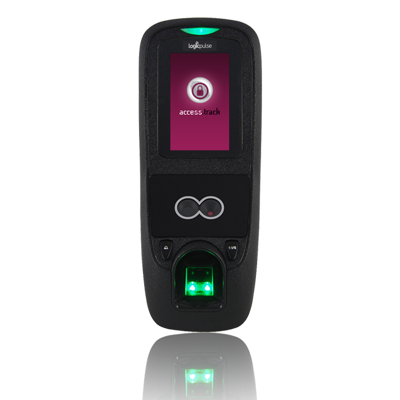

Terminal Biométrico de acessos e/ou assiduidade, facial e Cartão Proximidade [ASMB700]

Sorry - this product is no longer available

O terminal de controlo de acessos e/ou assiduidade mais evoluído para efectuar acessos. Reconhecimento facial e de impressão digital com opção de cartão, permite efetuar o controlo de acessos de forma eficaz e fiável.

SKU: ASMB700

Call for pricing

O Terminal de controlo de acessos e/ou assiduidade MB 700 tem um design robusto, compato e de grande fiabilidade usando a tecnologia 3D para aumentar a segurança e um leitor biométrico inovador e higiénico.
Este terminal pode ser usado para controlo autónomo porque possui contatos relé para ligar testa eletromagnética/fechadura eléctrica, botão de saída, alarme, etc.

Alimentação: 110/220VAC ~ 12VDC
Display: 3" TFT Touch screen
Avisos: Sonoros e LED’s Coloridos
Comunicação: TCP/IP, RS232/485, USB e Wiegand in/out
Capacacidade de Utilizadores: 5.000 dedos, 3000(1:1)faces, 1500(1:N)faces
Capacacidade de Transacção: Até 100.000 eventos sem descarregar
Modo de Controlo: 1:1 ou 1:N (conjugação face; cód. PIN; dedo)
Acessos: Sim
I/O: Fechadura, Sensor de porta, botão de saída e Sirene
Câmara de Reconhecimento: IR de Alta Resolução
CPU: 433Mhz Multi-Bio
Sensor: ZK óptico de 500dpi
Tempo de Identificação: ≤2seg
Temperatura de Funcionamento: 0ºC - 45ºC
Peso: 870gr
Certificação: CE, UL, FCC
Dimensões: 275x100x195 mm
Índice de Protecção: N/A
Plataforma de Hardware: ZEM600
Opcionais: EM/ Mifare, Adaptador e saída para impressão

Overview
Software
Downloads
Contact Us

Alimentação: 110/220VAC ~ 12VDC
Display: 3" TFT Touch screen
Avisos: Sonoros e LED’s Coloridos
Comunicação: TCP/IP, RS232/485, USB e Wiegand in/out
Capacacidade de Utilizadores: 5.000 dedos, 3000(1:1)faces, 1500(1:N)faces
Capacacidade de Transacção: Até 100.000 eventos sem descarregar
Modo de Controlo: 1:1 ou 1:N (conjugação face; cód. PIN; dedo)
Acessos: Sim
I/O: Fechadura, Sensor de porta, botão de saída e Sirene
Câmara de Reconhecimento: IR de Alta Resolução
CPU: 433Mhz Multi-Bio
Sensor: ZK óptico de 500dpi
Tempo de Identificação: ≤2seg
Temperatura de Funcionamento: 0ºC - 45ºC
Peso: 870gr
Certificação: CE, UL, FCC
Dimensões: 275x100x195 mm
Índice de Protecção: N/A
Plataforma de Hardware: ZEM600
Opcionais: EM/ Mifare, Adaptador e saída para impressão

access.track is an advanced access control and management system that provides high security at the level of access to your company/institution. access.track is the solution that uses the most advanced technologies, such as biometric control (fingerprint, iris reading, facial recognition, etc.) or RFID. The access management solution operates in the most varied action areas.

Lite version	Professional version	Enterprise version
Supported users: 20	Supported users: 150	Supported users: 500
Supported terminals: 2	Supported terminals: 5	Supported terminals: 20

Visit the solution website at https://access.track.pt

Features:

Access Control and Management

Access control based on user groups, allowing the definition of privileges and restrictions based on user/customer profiles;
Intuitive and visually appealing interface, making the operation of the application very simple and effective;
Management of zones, defined on the map or by indicating a set of doors/equipment to later be associated with users or user groups;
Support for authentication through RFID cards, Biometrics, Facial Recognition, Barcodes, Magnetic Stripe, etc.;
Real-time monitoring;
Possibility of customization according to each client's needs;
Possibility of integration with systems already existing in the company due to its modular architecture;
Obtaining parameterizable reports, by person, by time, by zone or other relevant indicators;
Possibility of integration with systems already existing in the company due to its modular architecture and 100% integrated with the POS logicPOS-Point of Sale/Billing application;
Possibility of customization according to each client's needs;
Obtaining real-time access/ticketing statistics (by person, group, zone or time);
Alarm management, allowing the creation of alarms and associated actions, using a wide variety of actuators and external systems;
Sending notifications in various ways, for example email, GSM, etc.

Parking Control and Management

In paid parking areas, full integration with ticketing management;
Definition of parking lot capacity with full management of the space;
Integrated with parking information panels;
Integration with light signaling;
Audible alerts for vehicles entering and leaving the parking areas;
Integration with several ticket issuing/validation towers with multiple authentication methods;
Access control system through long-range antennas;
Authentication method through automatic license plate recognition (OCR reading);
Real-time control dashboard with automatic LPR license plate identification.

Ticketing Control and Management

Availability of a visually appealing interface of the ticket.track module (POS ticketing management), making the access/ticketing control process very simple;
Possibility of integration with systems already existing in the company due to its modular architecture and 100% integrated with the POS logicPOS-Point of Sale/Billing application;
Tickets for customer groups, with multiple entries;
Tickets with multiple entries;
Tickets with multiple entries on different dates;
Customizable ticket prices;
Customizable ticket template/design;
Obtaining parameterizable reports, by ticket type, by time, by zone or other relevant indicators;

Visitor Control and Management

Create and manage visitor groups;
Definition of schedules for visits to specific programmed locations;
Assignment of a card with balances that deduct when entering a specific location, configurable for daily, morning, afternoon discounts, etc.; if the card has no balance, entry is rejected;
Assignment of a Master card designed to control all other cards.

Access control with Body Temperature Measurement

Create and manage staff and visitor access with body temperature measurement in compliance with GDPR and CNPD regulations;
Real-time monitoring dashboard, with temperature capture, notifications, alarms, etc.;
Access reports including detailed notifications and alarms.
